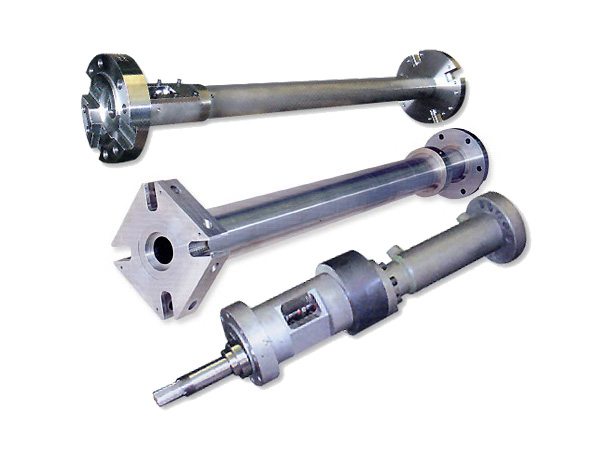

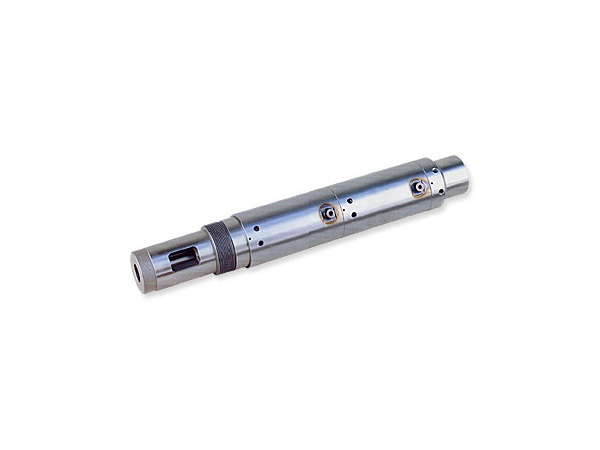

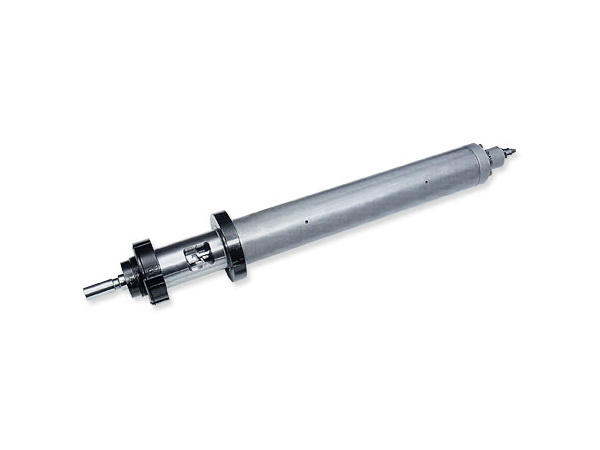

Barrel/Barrel Assembly parts

All Products


Features


  • Product quality :

    Ceramics barrel, Bimetallic barrel, Twin barrel, Ordinary nitrided barrel.
  • Application :

    Injection moulding machine both horizontal & vertical type, Extrusion moulding machine/Bake-lite moulding machine. Any rubber plastic moulding machine.
  • Processing Dimension:

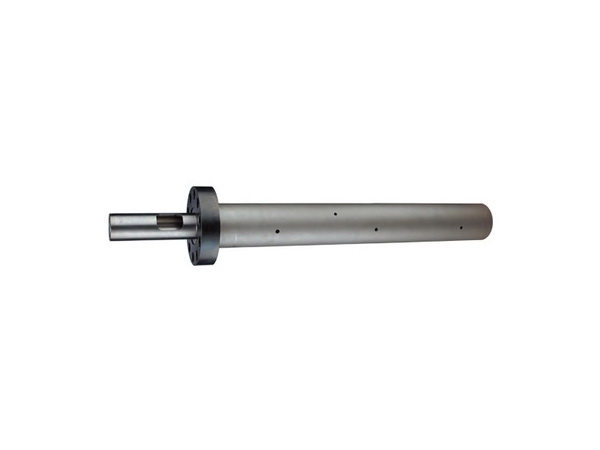

    Ordinary nitrided barrel
    ID Ø 15 ~ Ø 250mm,length: 6,000mm

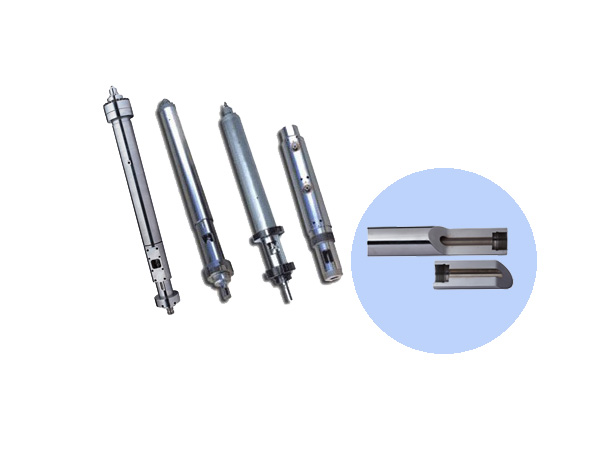

    Bimetallic barrel
    ID Ø15~ Ø 150mm,length: 5,000mm

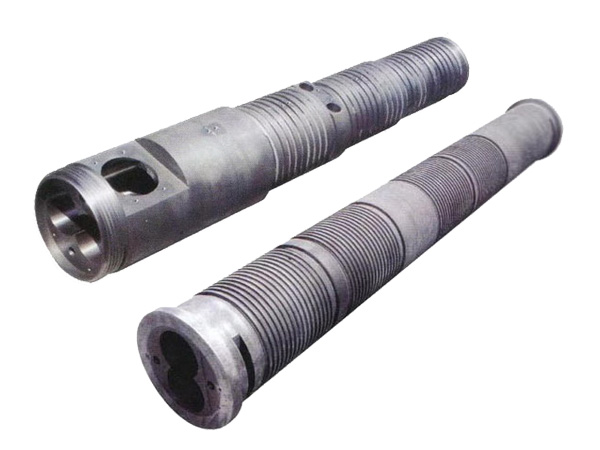

    Twin barrel
    ID Ø 45 mm / 2 ~ Ø 150 mm / 2, L/D:14~30
    Ceramics barrel
    ID Ø 14 ~ Ø 50 mm, length: 1,500 mm

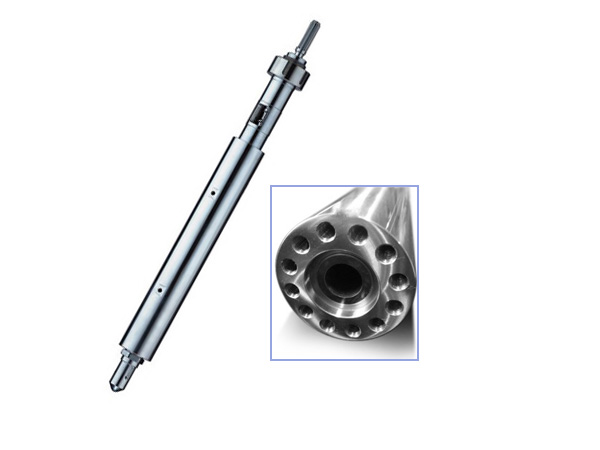

Bimetallic barrel


Bimetallic grade
WC 40%, 25% , 9.5%
Bimetallic hardness
HRC 60 ~ 70°
Hardness of surface
HV1100° ~ 1400°
Applied Range for Plastic
Applied to special engineering plastic such as kinds of glass fiber additives, plastic and PPA, PPS, LCP, Porcelain powder and PEI.
Barrel Chemical Composition Range
C, Si, B, Fe, Cr, Wc, Ni

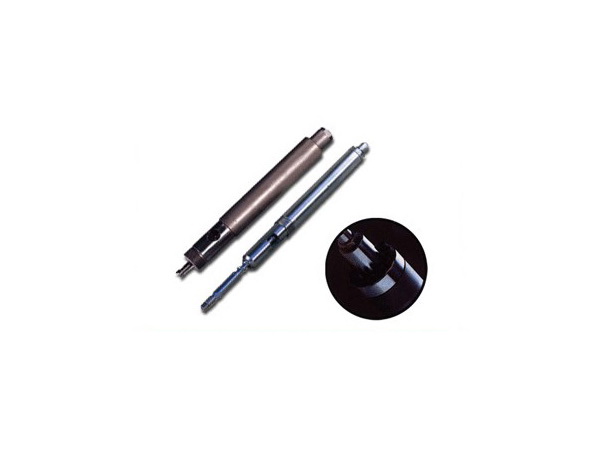

Ceramics barrel


Application
Ceramics barrel is a highly corrosion resistance and abrasion resistance product. It is the most highest quality product.
Hardness
HRC66° ~70°
Applied Range for Plastic:
Applied to special engineering plastic such as kinds of glass fiber additives, plastic and PPA, PPS, LCP, Porcelain powder and PEI.

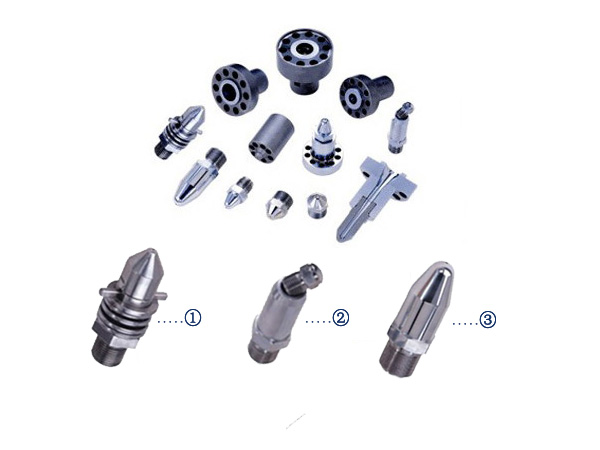

Barrel assembly parts


  • End cap, Flange, Adaptor, Cooling Ring, External & Internal spring nozzle for nylon.

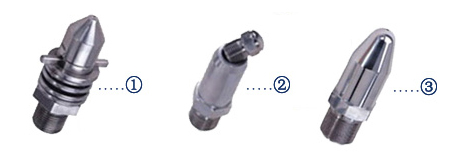

  • 1. Outer Spring Nozzle

  • 2. Double Nozzle

  • 3. Inner Spring Nozzle / Oil Nozzle
