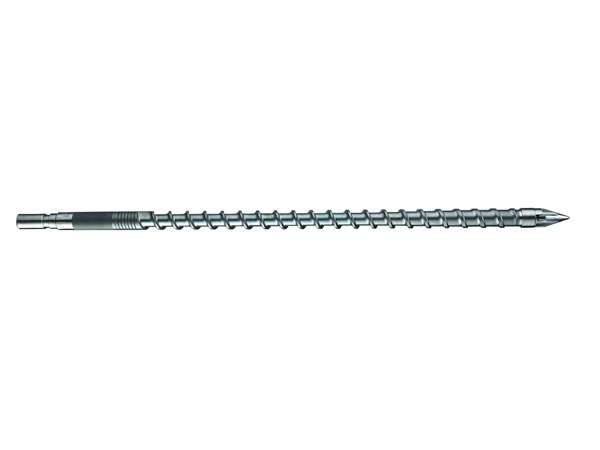

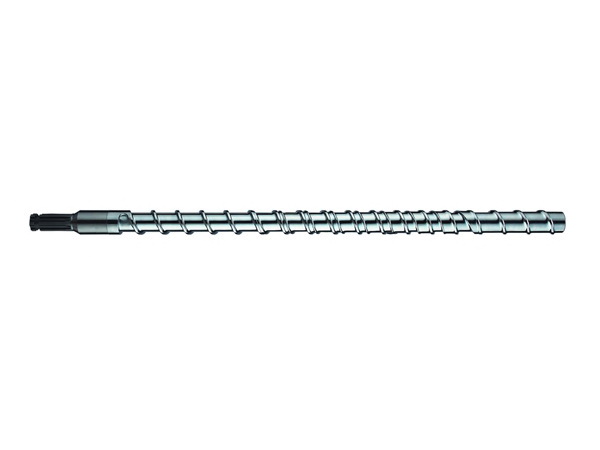

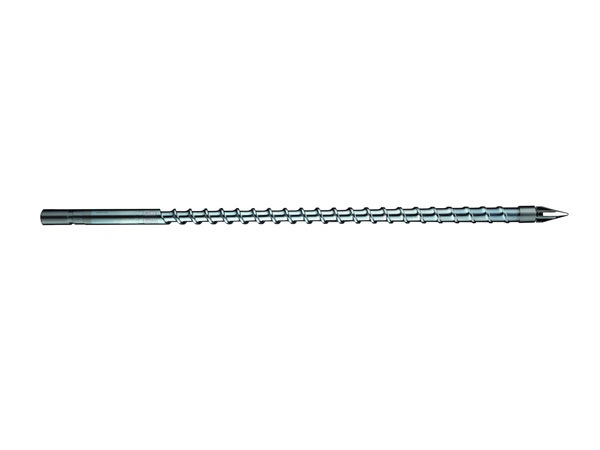

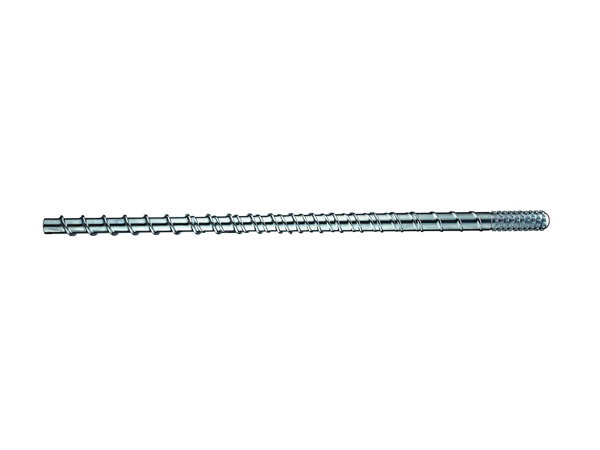

Screw/ Screw Assembly parts

Nowadays, more and more new innovative plastic materials are used in plastic industries. These plastic materials are highly corrosion and create huge damage on screws. In order to overcome this, TAI STAR do more effort on research different type of screw e.g. PTA bimetallic alloy screw, WC spray coating screw, Full hardening powder metallurgy (PM) screw. Recently, we take more research on Ceramic screw which is especially for halogen free material. This can enhance the life time of screw and bring more benefit to our customer.


Features


  • Product quality :

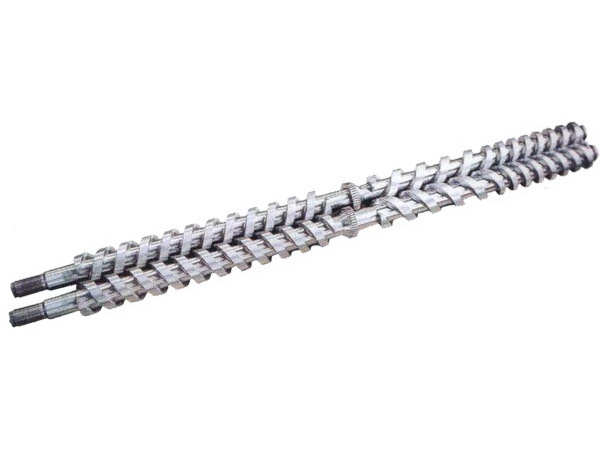

    Full hardening Powder Metellurgy Screw, HOVF Full Hardening WC Spray Coating Screw, PTA bimetallic alloy screw, electro – plating screw, ordinary screw, ordinary nitrided screw, twin screw.
  • Application :

    Injection molding machine both in horizontal & vertical type, Extrusion molding machine / Bakelite molding machine, and Rubber molding machine.
  • Processing Dimension:

    Min OD: Φ15mm,max OD: Φ250mm,effective length: 5000mm

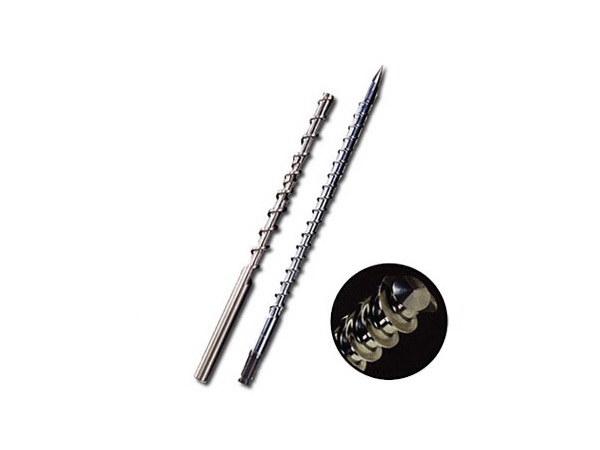

Ceramics screw


Application
Ceramics barrel is a highly corrosion resistance and abrasion resistance product. It is the most highest quality product.
Hardness
HRC66° ~70°
Applied Range for Plastic
Plastics raw material with glass fiber additive (15%~70%). Special engineering plastics such as LCP, Teflon, porcelain powder and halogen free material etc.

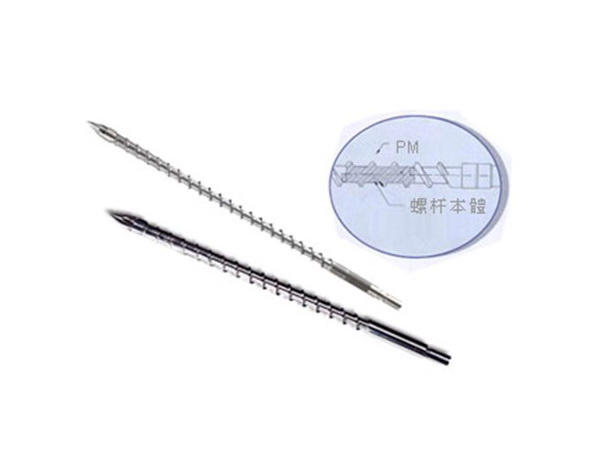

Full hardening powder metallurgy (PM) screw


Coating density
98~99.8%
Alloy hardness
HV1100° ~ 1400°
Adhesive strength
10000 Psi以上

HVOF Full Hardening WC Spray Coating Screw


Coating density
98~99.8%
Alloy hardness
HV1100°~1400°
Adhesive strength
10000 Psi or above
Applied Range for Plastic
Special engineering plastics such as kinds of 30% glass-fiber additives, PPA, PPO, PPS, LCP, porcelain powder and PC.

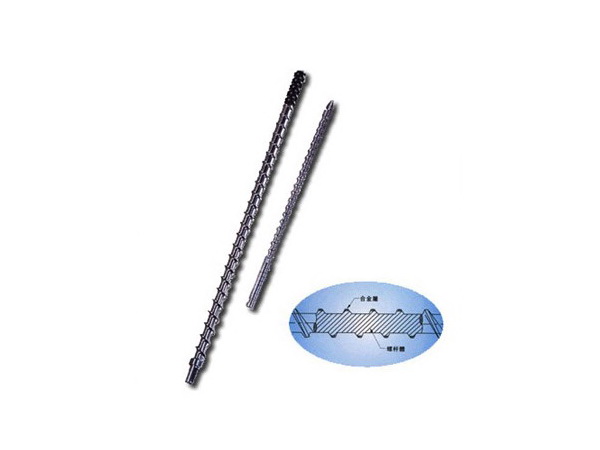

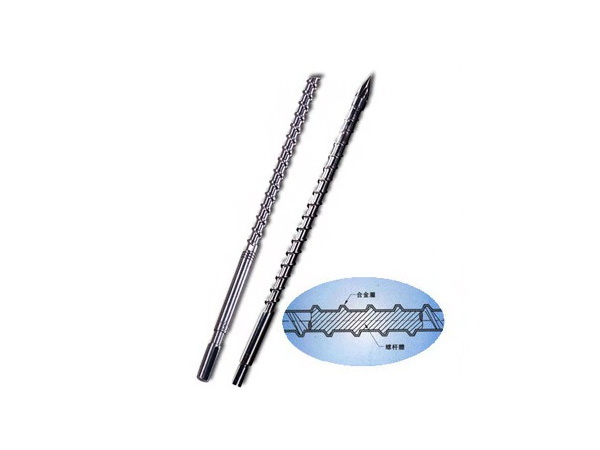

PTA Bimetallic alloy screw


Alloy hardness
Screw flight top hardness HV1100 ~ 1400
Applied Range for Plastic
Suitable for any plastic material with glass fiber less than 15% glass fiber additive.

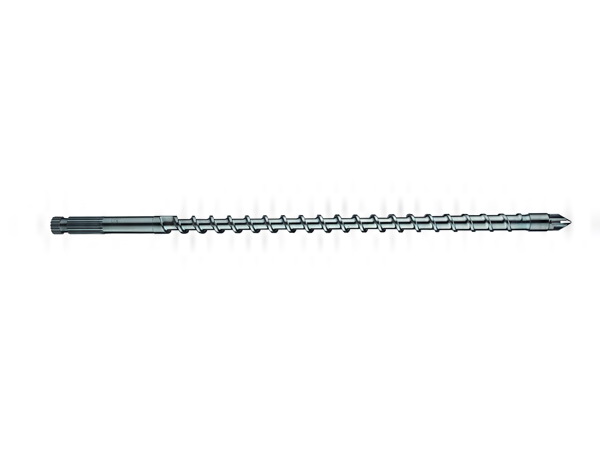

Nitrided screw


Surface hardness
HV950° above
Nitrided depth
1mm above
Applied range for plastics
Normal plastics PP,PS,ABS,AS,PE

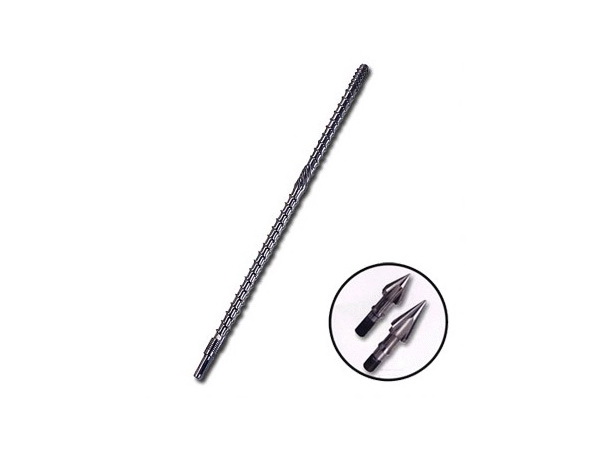

Screw assembly parts



Screw head, check ring and seat ring
